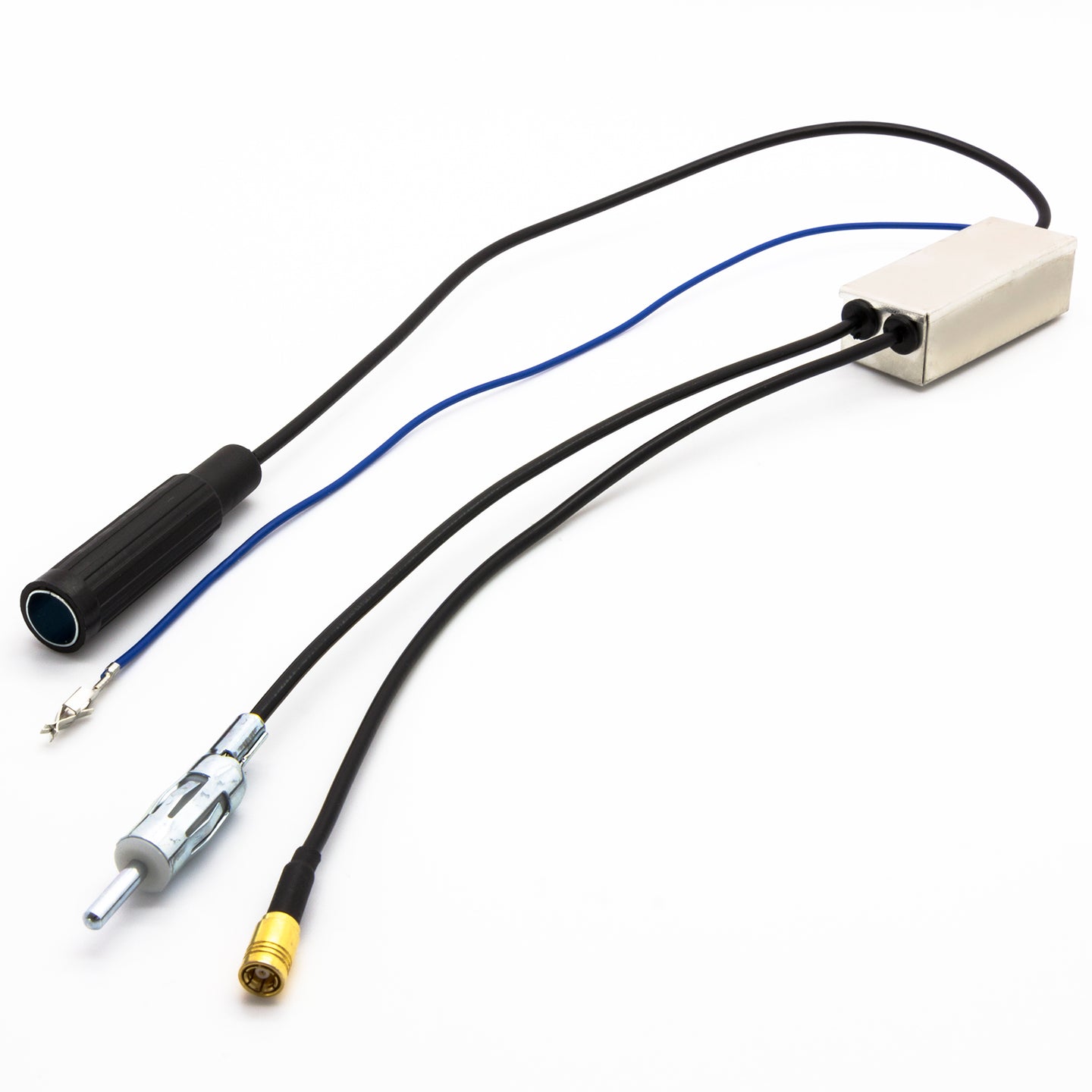

This active DAB (Digital Audio Broadcasting) / antenna splitter adapter offers you the opportunity to use your normal rod antenna as a DAB antenna.

Just plug the antenna plug into the adapter socket and the adapter splits the antenna signal into the FM/DAB areas via a high-quality, solid separator.

The integrated amplifier is powered externally via the car radio's ignition plus with an integrated, additional fuse, which also acts as a safeguard.

Note: The prerequisite for perfect function is an antenna rod length of 30 - 100 cm. This adapter is only compatible with non-amplified FM antennas.

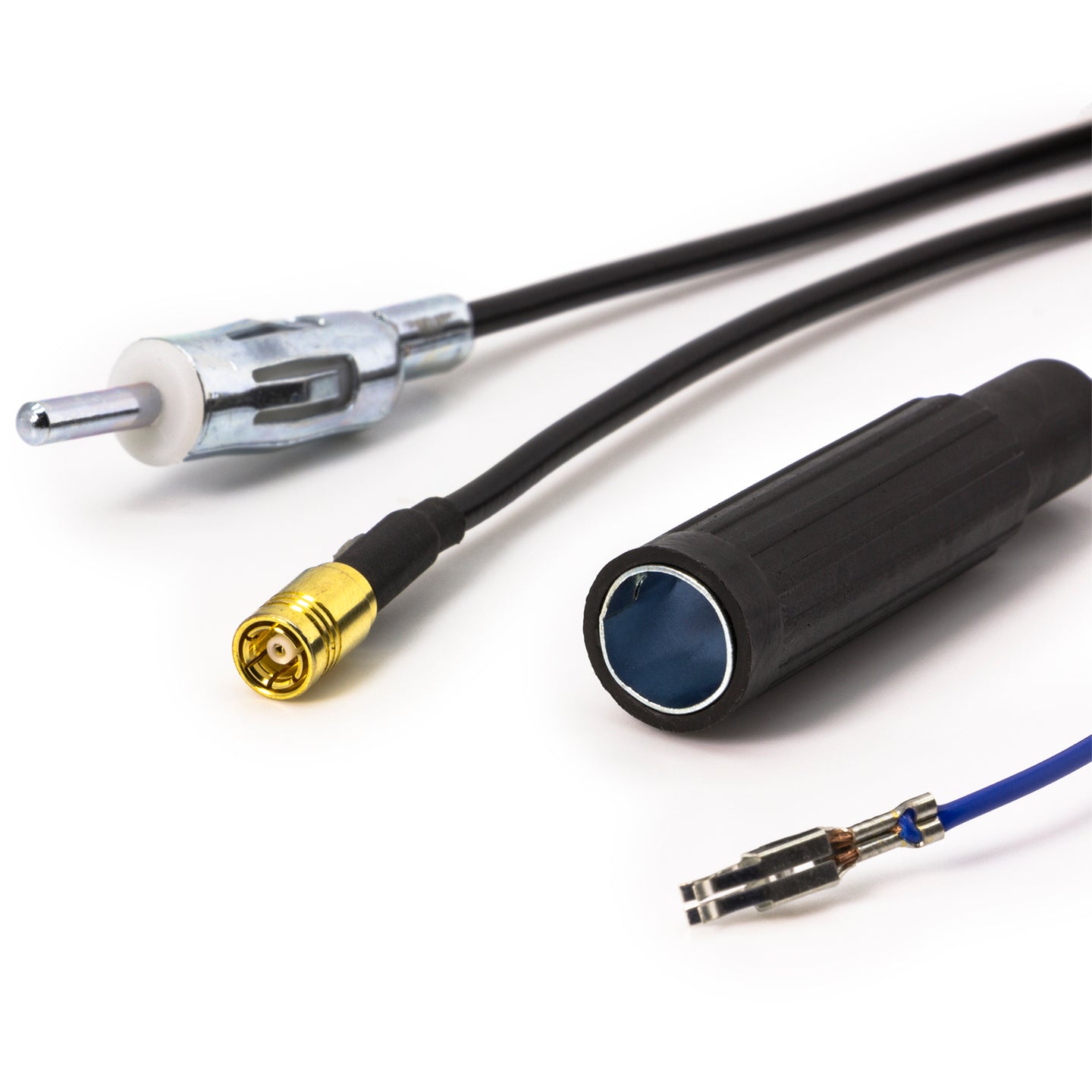

Technical details:

  • 1x DIN socket
  • 1x 12V power cable (blue)
  • 1x SMB socket
  • 1x DIN plug
  • Antenna adapter length: approx. 34 cm
  • Power consumption: 6mA
  • Gain: AM/FM: 10 ± 2 dB DAB: 20 ​​± 2 dB Gain (dBi) 15 dBi ~ 20 dBi
  • Impedance: 75O
  • Noise figure: <2dB
  • Compatible with the following car radios that have DAB installed:

    Alpine / Blaupunkt / Clarion / JVC / Kenwood / Pioneer / Sony

    Scope of delivery:

    • 1x DAB+ antenna splitter from Adapter-Universe
