Installation is very simple:

1.Remove the original radio
2.Assemble the radio cover
3. Attach the cover to the radio cover with metal snap hooks
4. Attach the bracket to the radio with screws

Special:

  • Easy installation
  • High quality
  • Suitable for double DIN car radios

Technical data:

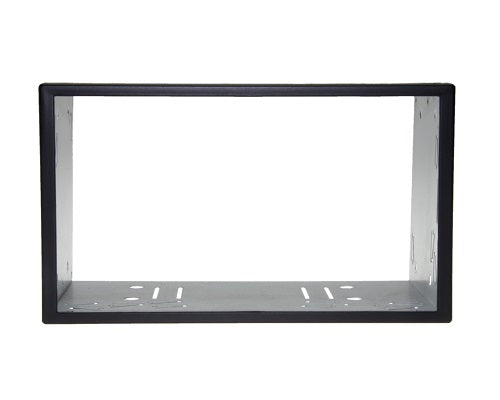

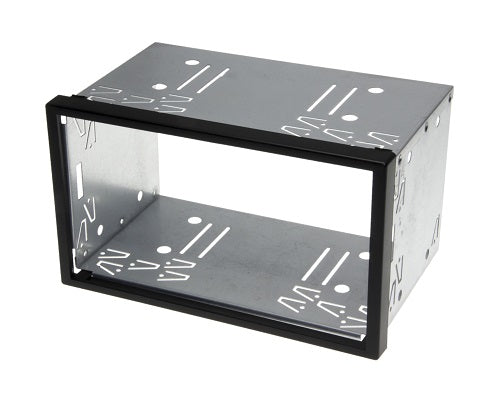

  • Dimensions of the radio cover (inside): approx. 172mm x 99mm
  • Dimensions of the radio bezel (outside): approx. 187mm x 109mm
  • Dimensions of the radio bezel (depth with hooks): approx. 22mm
  • Dimensions of the installation shaft: approx. 182mm x 102mm
  • Dimensions of the installation shaft (depth): approx. 100mm
  • Compatible with double DIN car radios

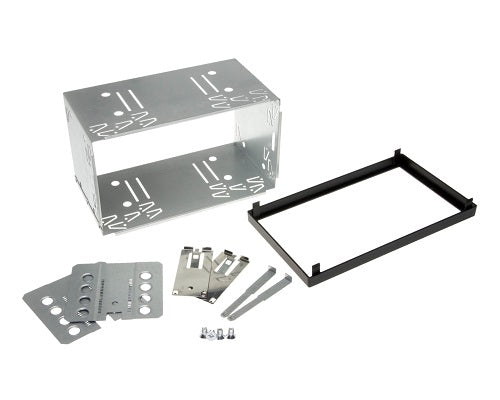

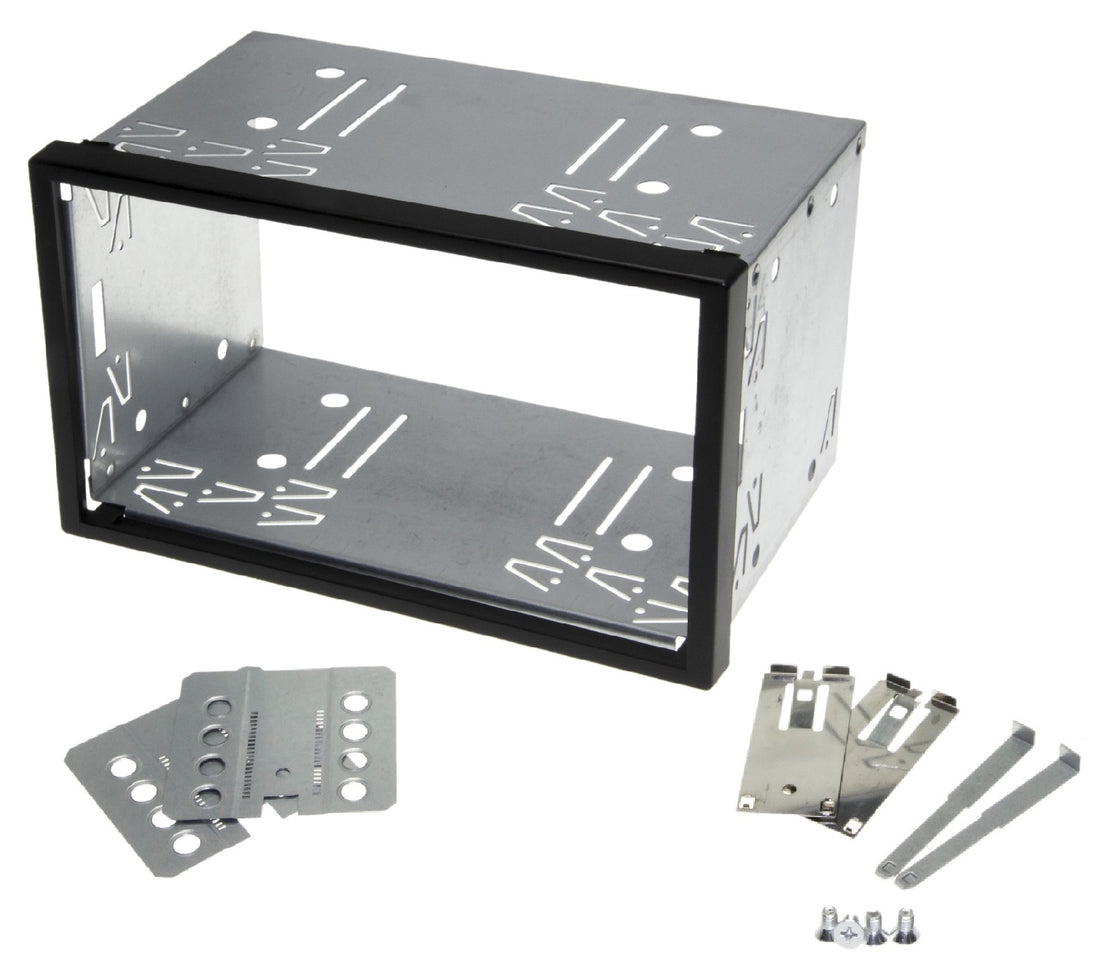

Scope of delivery:

  • 1 x double DIN ISO car radio bezel (black)
  • 1 x metal installation shaft 100mm (silver)
  • 1 x mounting material (screws, metal snap hooks)
  • 1 x release bracket (1 pair)
