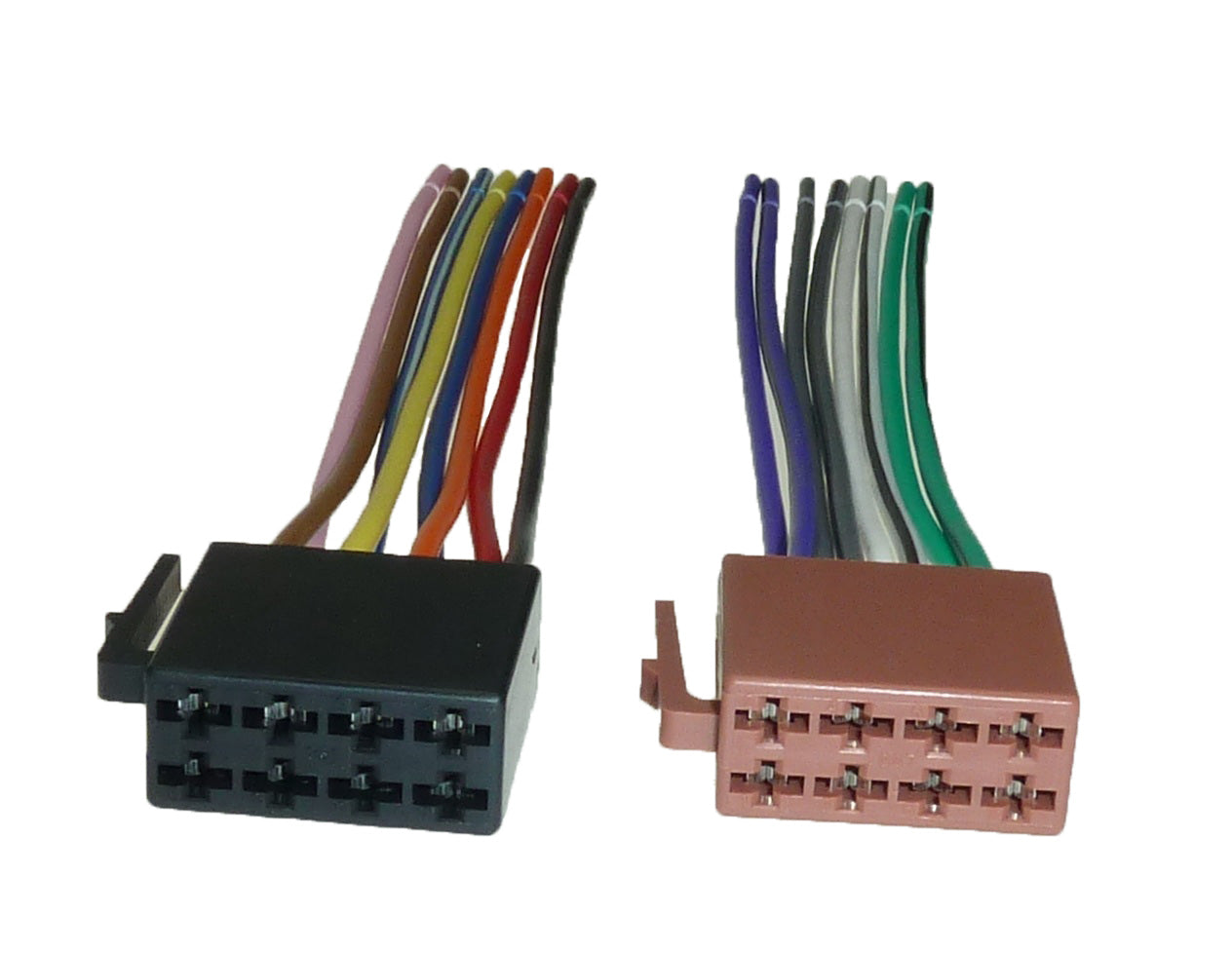

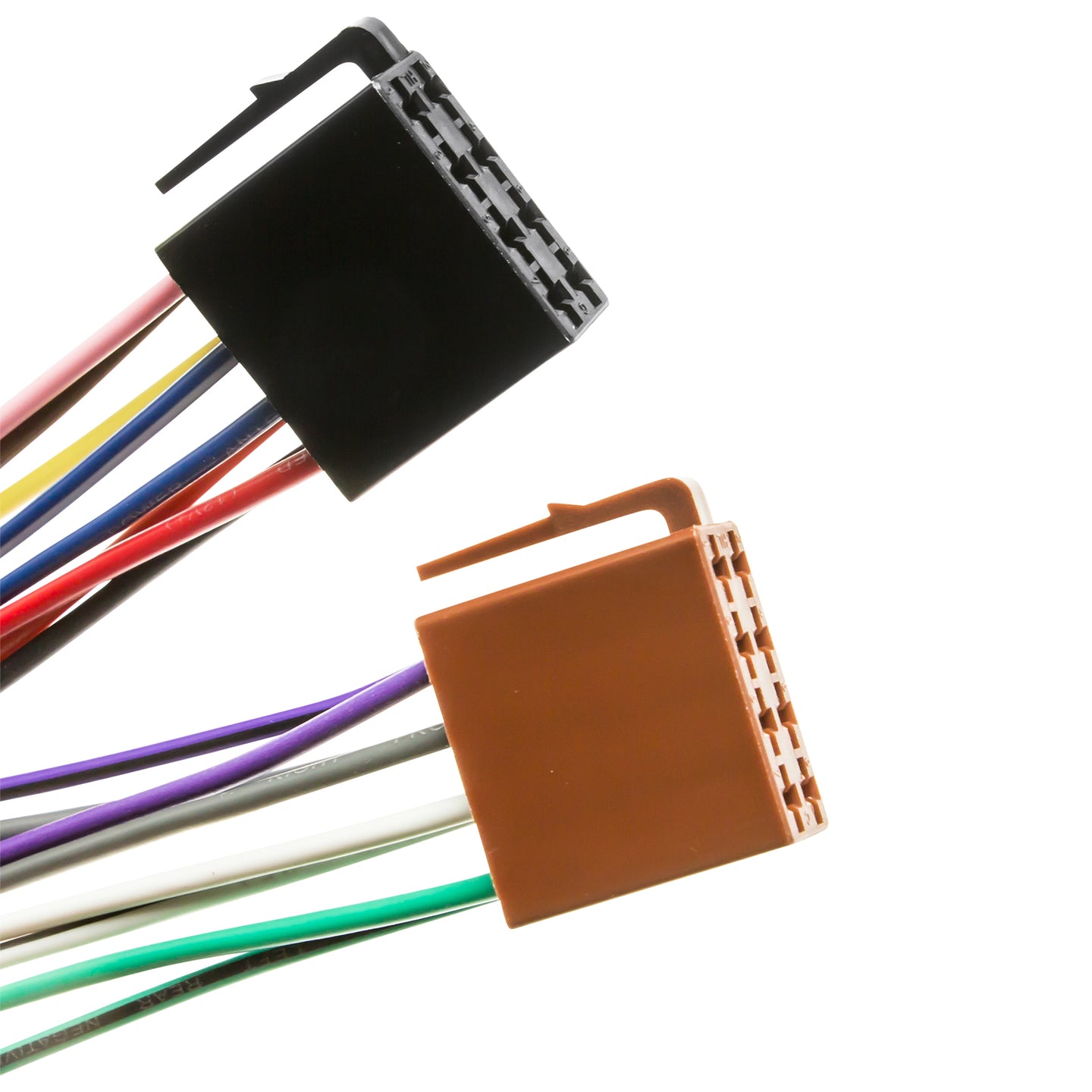

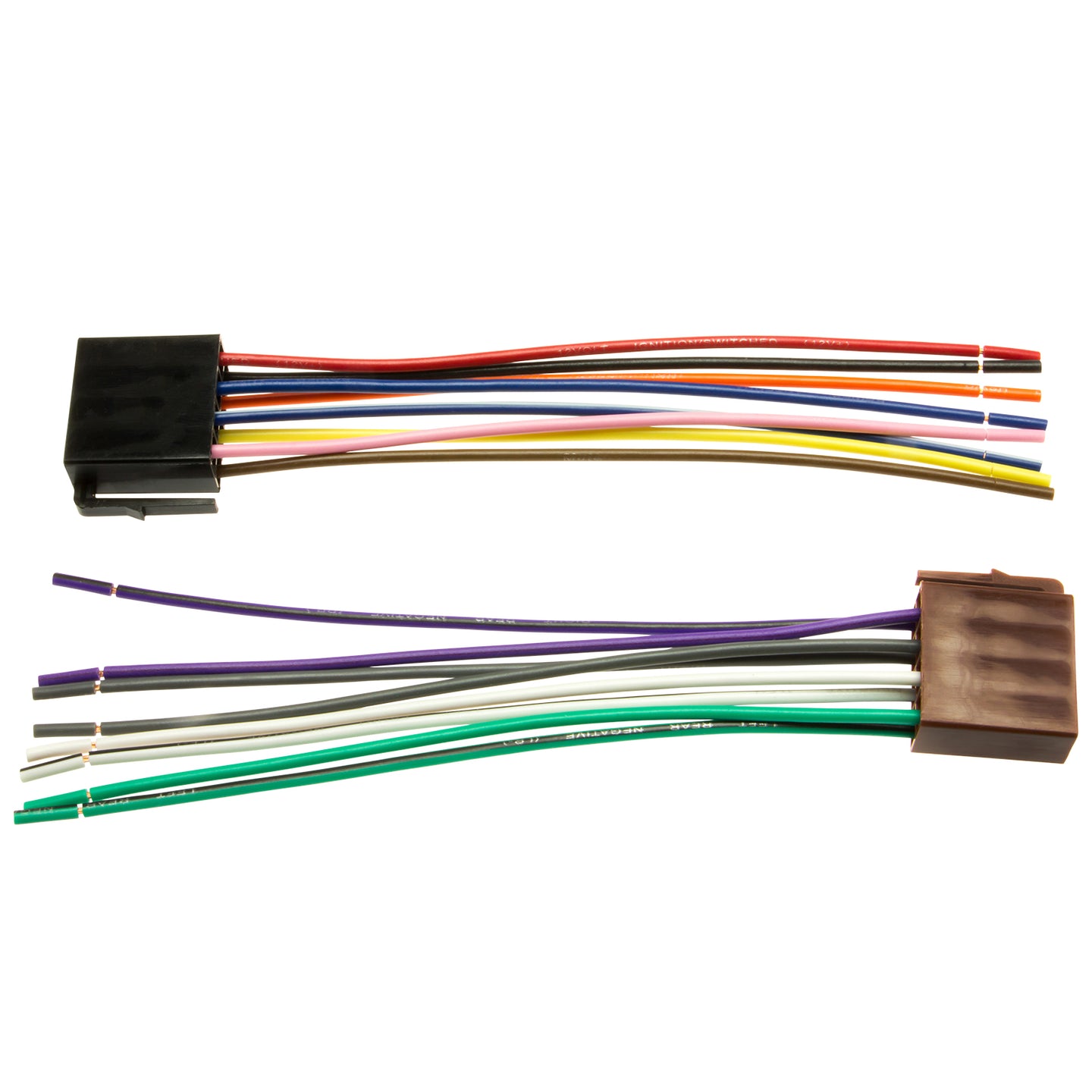

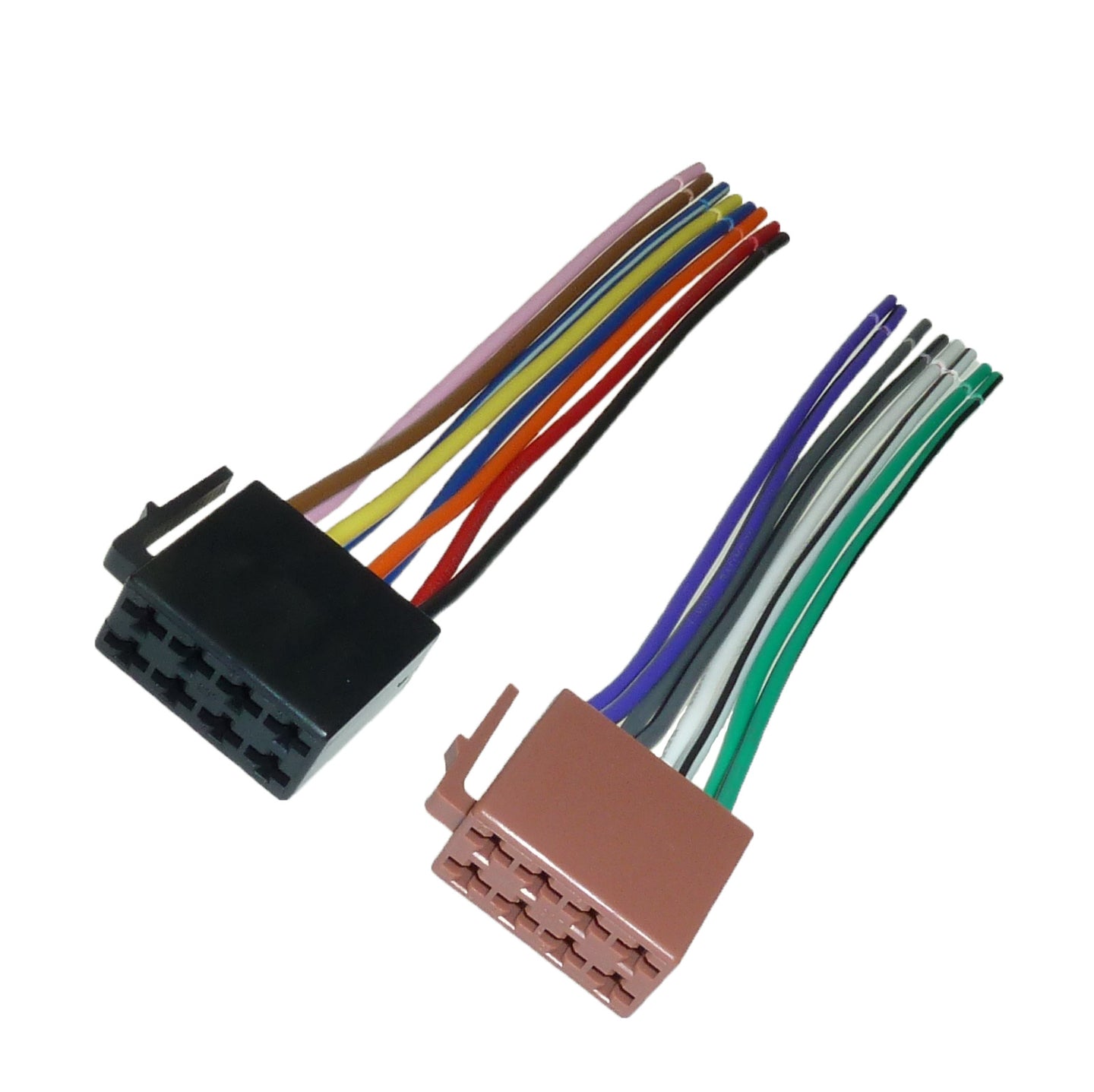

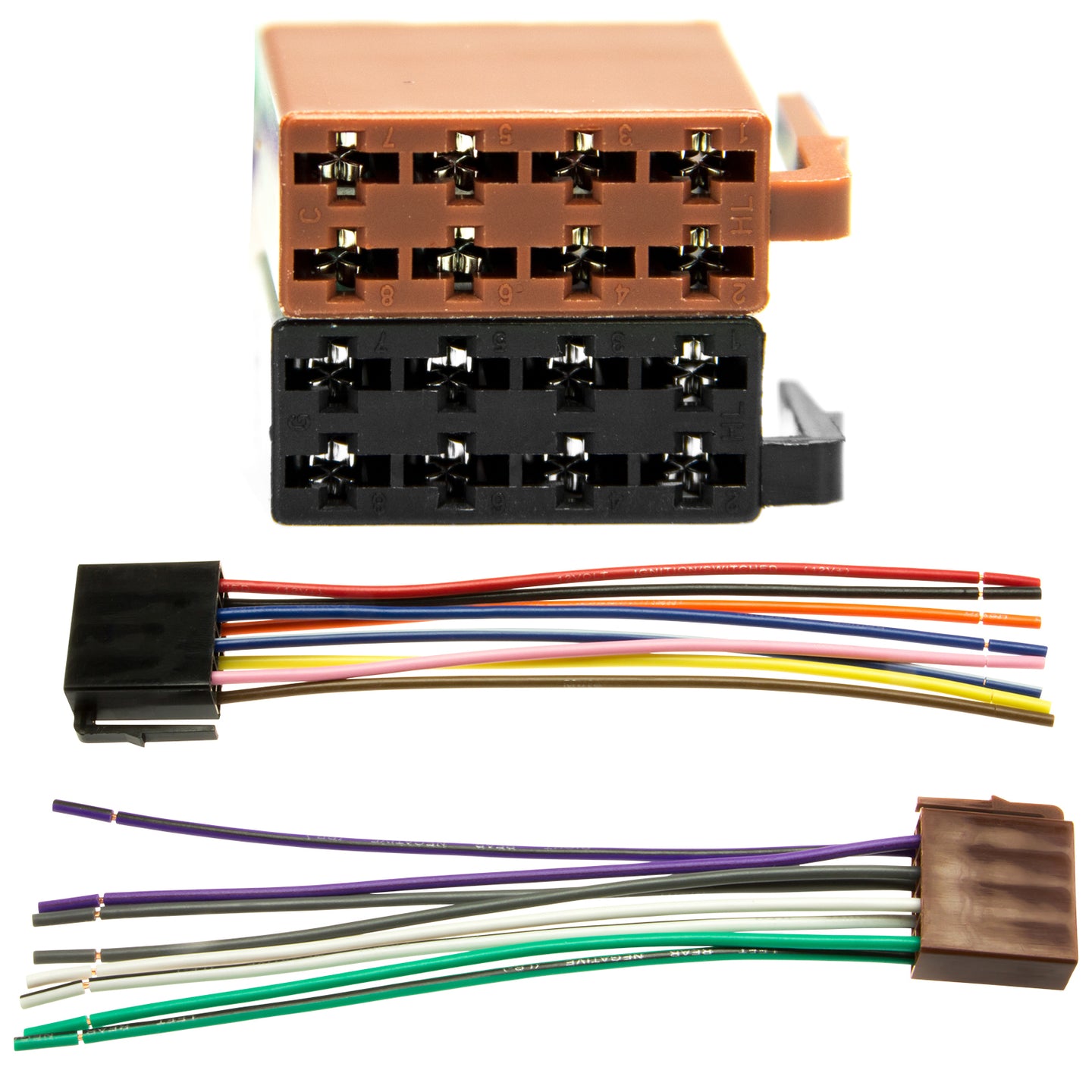

16-pin ISO standard connector on open cable ends.

Fully occupied

A Black plug (power)

1 speed signal (GALA)
2 Telephone mute function (MUTE)
3 Signal from the reversing light
4 Continuous plus (terminal 30)
5 automatic antenna/remote
6 lighting/dimmer (terminal 58)
7 Switched plus (terminal 15)
8 ground (terminal 31)

B Brown plug (audio)

1 rear right speaker +
2 speakers rear right -
3 speakers front right +
4 speakers front right -
5 speakers front left +
6 speakers front left -
7 rear left speakers +
8 speakers rear left -

Compatible with e.g. the following radios/vehicles:

VW, Audi, Mercedes, Chrysler, Citroen, Daewoo, Daihatsu, Fiat, Ford, Honda, Hyundai, Kia, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Renault, Land Rover, Seat, Skoda, Smart, Suzuki, Toyota, Volvo , Alfa Romeo, VDO

Alpine, Becker, Blaupunkt, Clarion, Grundig, JVC, Kenwood, Panasonic, Philips, Sanyo


Technical data:

  • 16pin DIN ISO connector
  • Cable length approx. 16cm

Scope of delivery:

  • 1 x 8-pin black connector to open cable ends
  • 1 x 8-pin brown connector to open cable ends
